Renz America ASPI 300

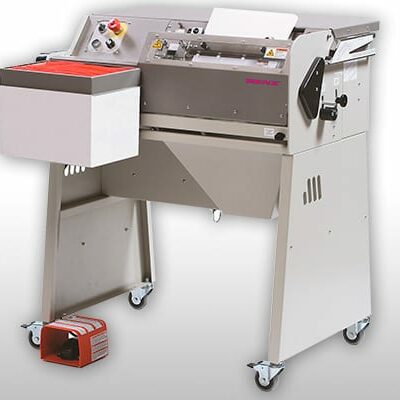

The APSI 300 Automatic Plastic Spiral Inserter binds up to 600 books per hour and accommodates pre-cut plastic spiral diameters from 6mm to 20mm. Diameters up to 30mm are available with the optional changeover kit. A built-in spiral sizing gauge helps the operator confi rm the exact diameter required in relation to the book’s thickness. Vertical book placement allows for tabs or deeper covers to line up easily and bind accurately. In addition, a set of 15 spine formers are what the prepunched books sit on and correspond to the diameter of spiral being used. Spiral diameter setup and changeover is quick and accurate with the QSA (quick-size adjustment) lever and does not require tools. The APSI 300 measures 36” x 24” x 42” and is mounted on wheels for easy relocation
Renz America ASPI 300
Product Brief
Product Video
Key FeaturesPitch 0.2475" or 4:1 or 6 mm for coil Ø 6 - 20 mm 3:1 or 2.5:1 for coil Ø 23 - 30 mm. Binding thickness 3.5 - 26 mm (1). Binding element Ø 6 - 30 mm. Min. binding width 127 mm. Max. binding width 305 mm. Min. unbound edge 127 mm. Max. unbound edge 500 mm. Binding operation Electric insert, cut & crimp. No. of books output per hr 600. Time required for diameter change 5 min. Format change without diameter 2 min. Machine dimensions L x W x H 920 x 610 x 1,070 mm. Machine weight 86 kg. Machine packing dimensions L x W x H 1,140 x 990 x 1,270 mm. Machine weight with packing 125 kg. Compressed air 7 bar. Power requirement 220 V/1.4 Amp. 115 V/2.0 Amp.Renz America ASPI 300
The APSI 300 Automatic Plastic Spiral Inserter binds up to 600 books per hour and accommodates pre-cut plastic spiral diameters from 6mm to 20mm. Diameters up to 30mm are available with the optional changeover kit. A built-in spiral sizing gauge helps the operator confi rm the exact diameter required in relation to the book’s thickness. Vertical book placement allows for tabs or deeper covers to line up easily and bind accurately. In addition, a set of 15 spine formers are what the prepunched books sit on and correspond to the diameter of spiral being used. Spiral diameter setup and changeover is quick and accurate with the QSA (quick-size adjustment) lever and does not require tools. The APSI 300 measures 36” x 24” x 42” and is mounted on wheels for easy relocation
Key FeaturesPitch 0.2475" or 4:1 or 6 mm for coil Ø 6 - 20 mm 3:1 or 2.5:1 for coil Ø 23 - 30 mm. Binding thickness 3.5 - 26 mm (1). Binding element Ø 6 - 30 mm. Min. binding width 127 mm. Max. binding width 305 mm. Min. unbound edge 127 mm. Max. unbound edge 500 mm. Binding operation Electric insert, cut & crimp. No. of books output per hr 600. Time required for diameter change 5 min. Format change without diameter 2 min. Machine dimensions L x W x H 920 x 610 x 1,070 mm. Machine weight 86 kg. Machine packing dimensions L x W x H 1,140 x 990 x 1,270 mm. Machine weight with packing 125 kg. Compressed air 7 bar. Power requirement 220 V/1.4 Amp. 115 V/2.0 Amp.
