FoilGlazer II

Features
• Single-side lamination
• Speed: Laminating: 16.4’/min.
• Speed: Foilglazing: 9.84’/min.
• Sheet Capacity: 2″ Stack
• Paper Weight: 110 – 400 gsm* (32lb bond – 150lb cover)
• Paper Size: Laminating: 11.69” x 8.26” – 14.37” x 23.62”
• Paper Size Foilglazing: 5.82” x 8.26” – 14.37” x 23.62”

Product Details
• Item #: CU0484
• Electrical Requirements: 100-120 V, 50/60 Hz
• Dimensions (D x W x H): 22.9″ x 24.45″ x 47.48″
• Dimensions with table: 67.6″ x 24.45″ x 47.48″
• Weight: 254lbs.

*Production rates are based on optimal operating conditions and may vary depending on stock and environmental conditions.

Categories: , , Brand:

Description

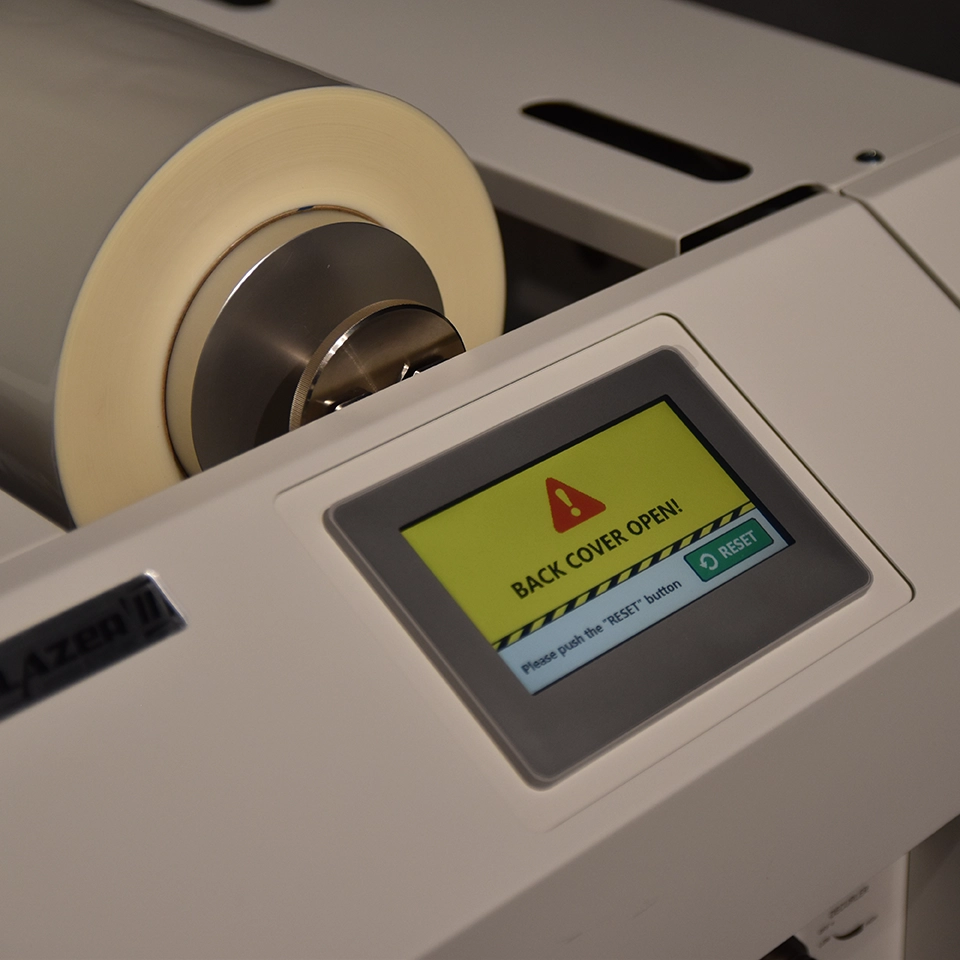

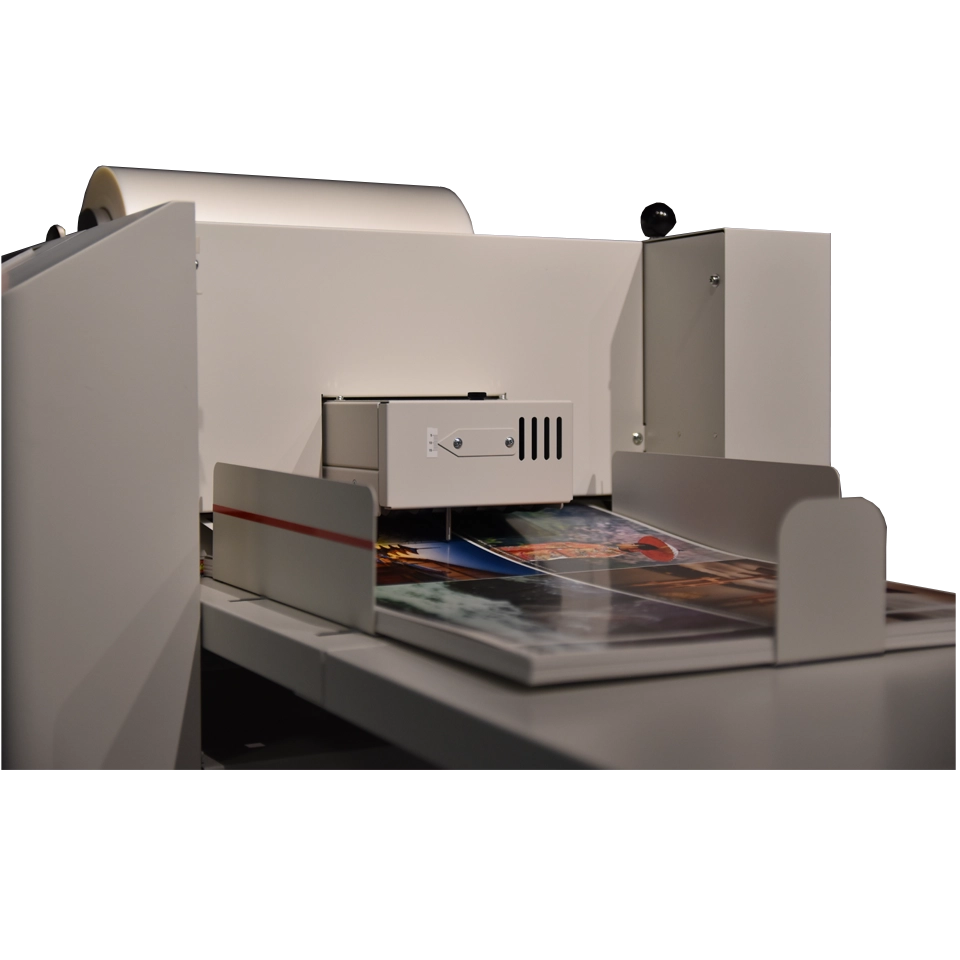

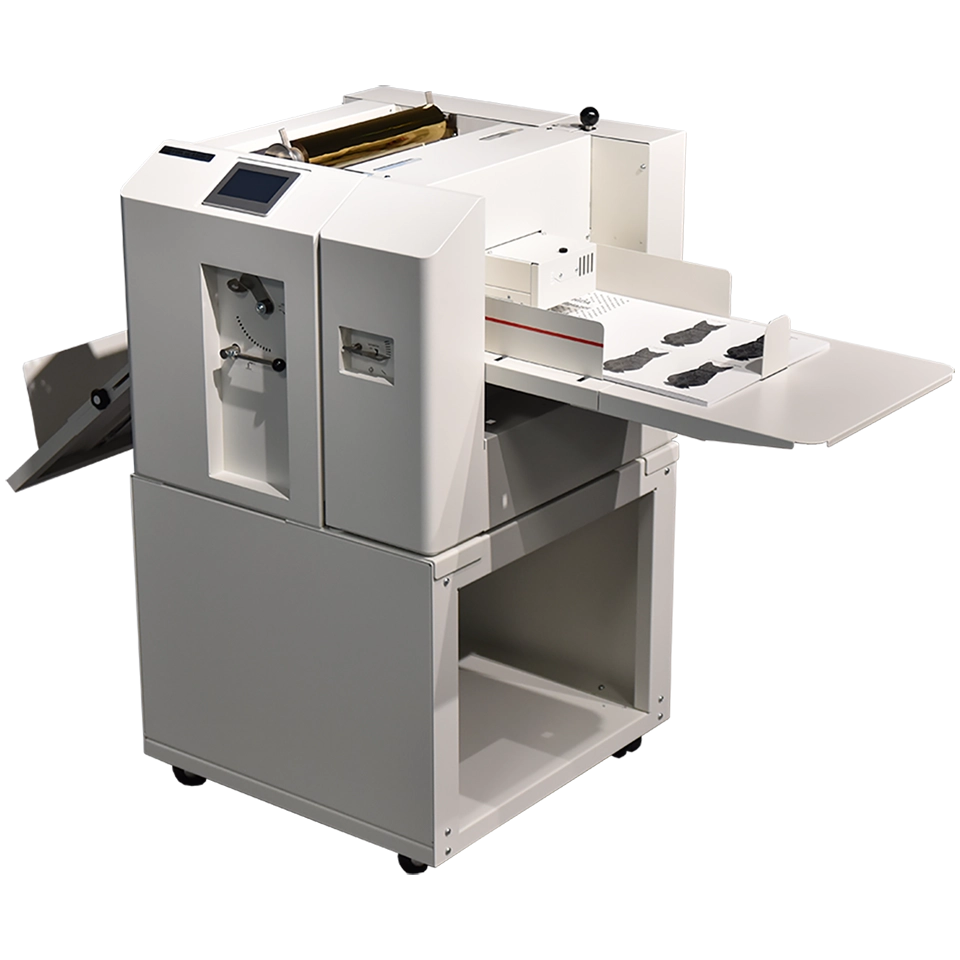

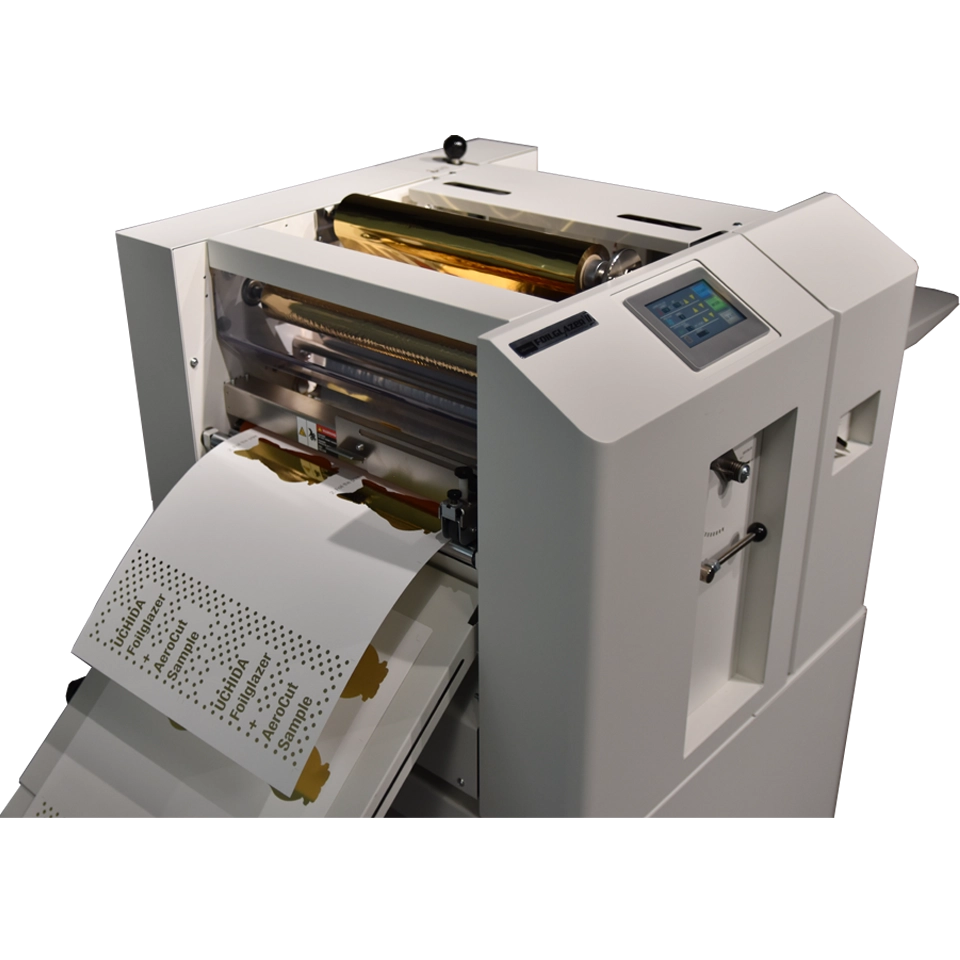

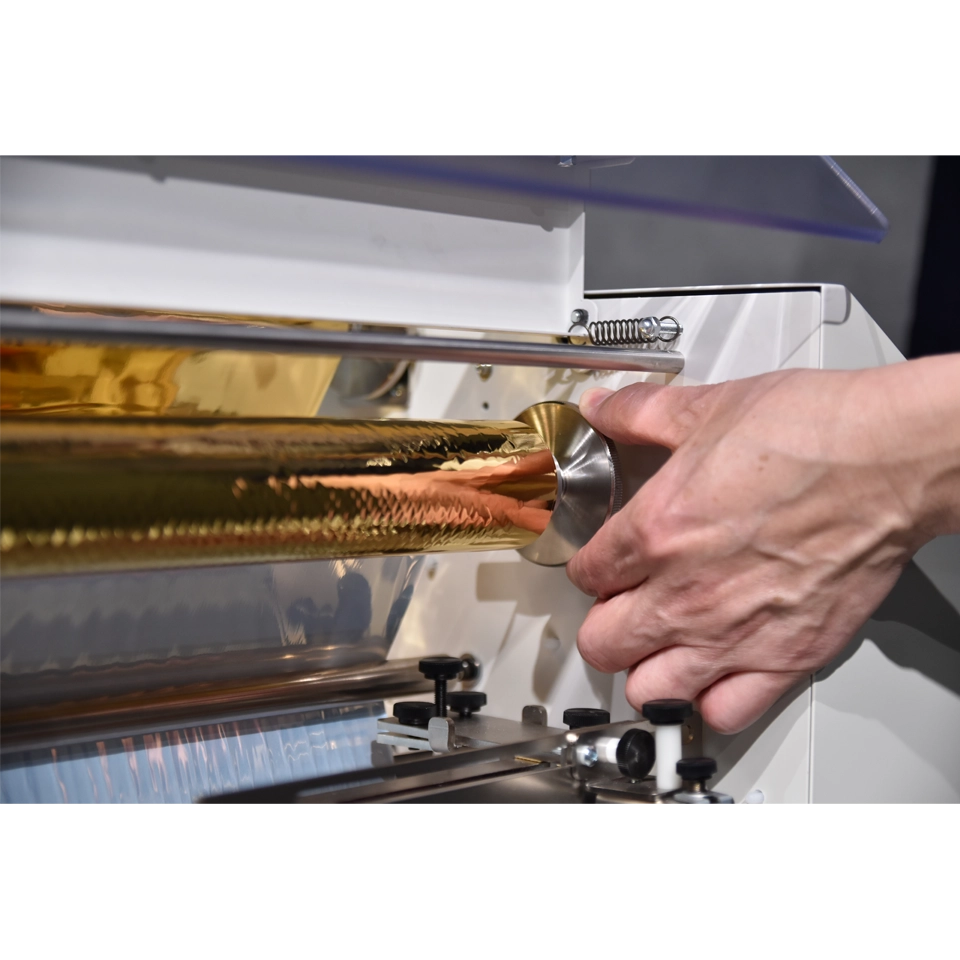

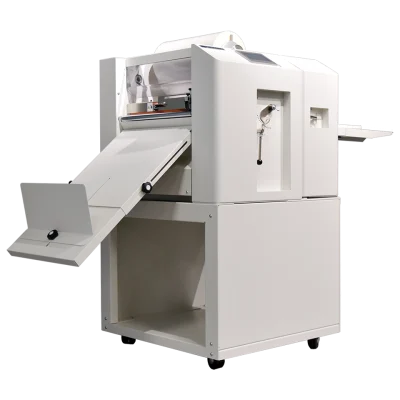

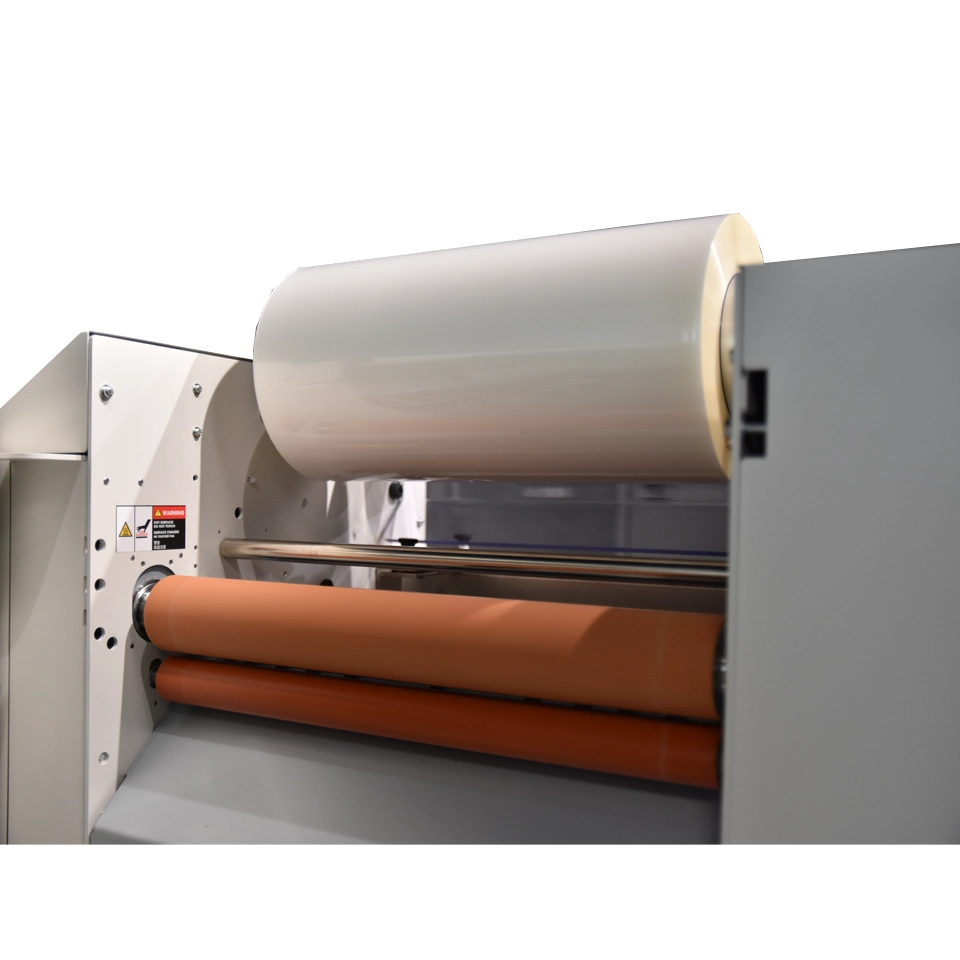

The MBM Laminator and Foil Fuser, Foilglazer II, is a compact and robust single-sided laminating and foil-fusing machine, ideal for laminating and embellishing digitally printed, short-run jobs. It accommodates paper sizes up to 14.3” x 23.6” and features an easy-to-use 4.3” color touch screen with an inching switch and pressure roller lifting lever. The automatic air suction feeding system ensures consistent feeding for various print stocks, ranging from 110gsm to 400gsm, and various laminating films. Ideal for on-demand foil fusing, it works with any color foil rolls on black toners to enhance digital prints. The Foilglazer II offers intuitive operation, with a maximum laminating speed of 16.4 ft/min and 9.84 ft/min for Foilglazing. It also features an automatic film cutting mechanism for efficient, hands-free operation.
